You are here : section steel--Katalor steel > News > 正文JIS3106 SM400B angel steel Mechanical Properties

JIS3106 SM400B angel steel Mechanical Properties

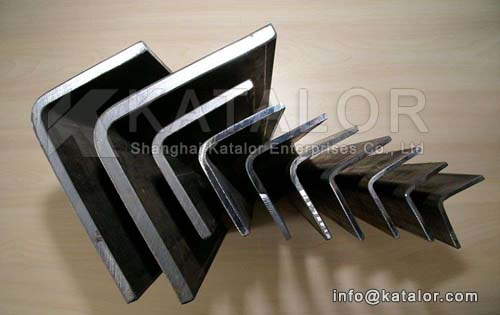

SM400B angel steel
Carbon structural angel steel SM400B is Under Janpanese steel standard Jis g3106,SM400 has three different grades,aush as SM400A,SM400B and SM400C,the main difference is the carbon contains for these steel grades.Comparing with SM400B,angel steel SM400C have to be done low temperature impacting test under 0 centigrade with the minimum impact energy value at 47J,SM400B with 27J for the sample test plate.If the end users need do heat treatment for structural angel steel SM400B under Normalized,Quenched and Tempered,Tempered,they should issued this term in PO when ordered.

JIS3106 SM400B angel steel Chemical Composition Analysis
:

Grade C Si M P S
JIS 3106 SM400B Thickness≤50mm 0.20max 200mm>50mm 0.22max 0.35 max 0.60 to1.40 0.035 max 0.035 max



JIS3106 SM400B angel steel Mechanical Properties:

Grade Yield point or proof stress N/mm² Tensile strength N/mm²
Thickness of steel product (²) mm Thickness mm
≤16 >16<40 >40<75 >75<100 >100<160 >160<200 ≤100 >100<200
JIS 3106 SM400B 245 min 235 min 215 min 215 min 205 min 195 min 400 to 510 400 to 510

Katalor enterprises is the professional Chinese SM400B angel steelsupplier .We keep a lot SM400B angel steel in our warehouse. We promise the competitive price in order to enlarge our oversea market. If you want to know SM400B angel steel ,please be free to contact us.
